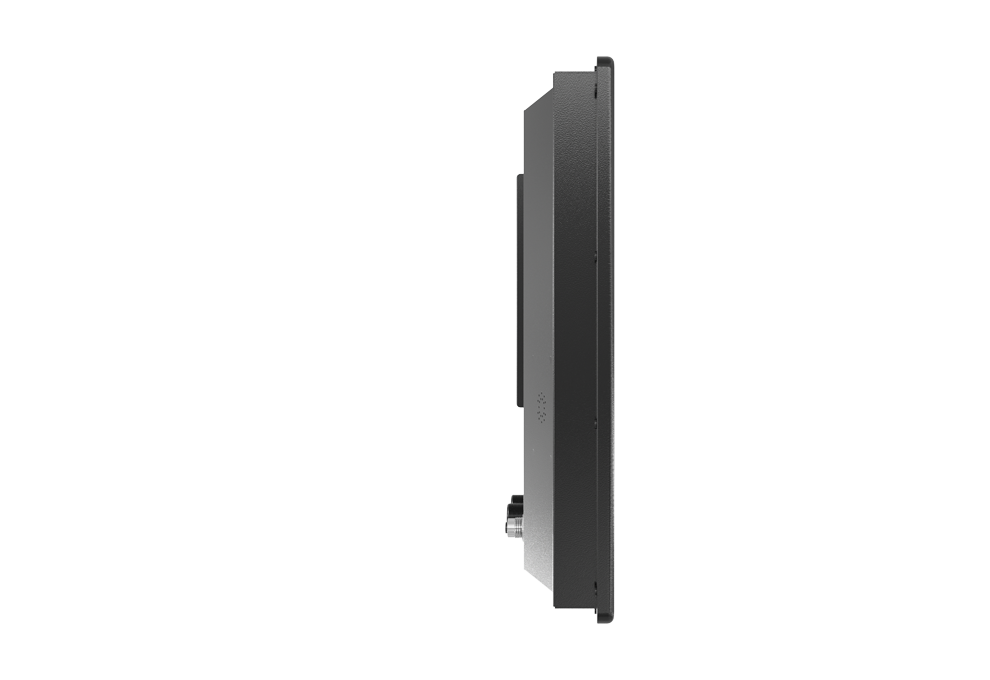

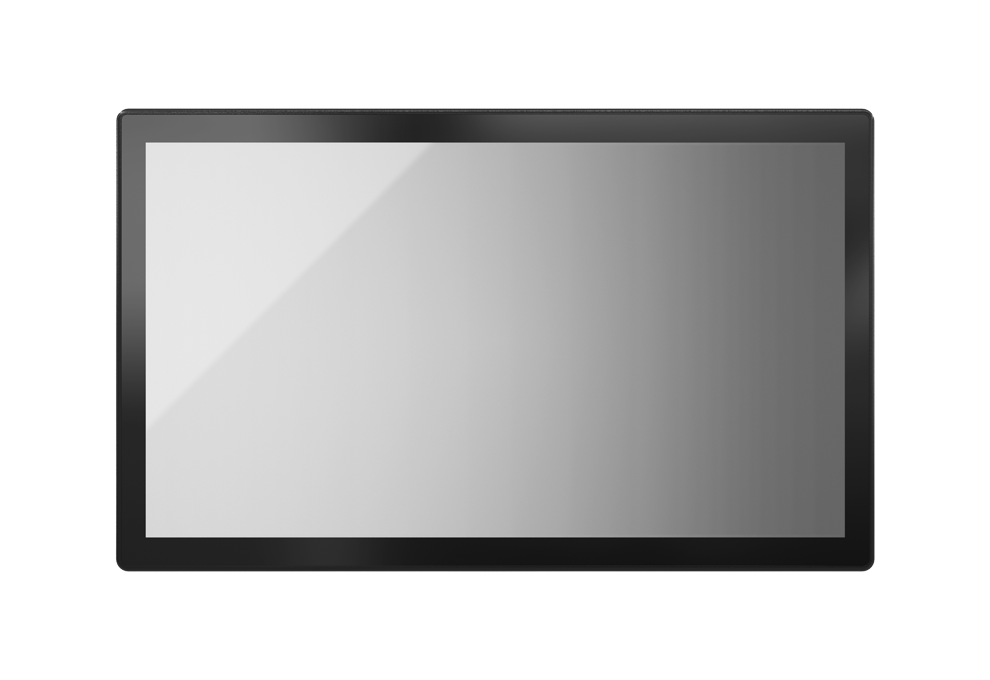

WIO-W221C

The WIO-W221C full system IP66 waterproof stainless steel Panel PC is based on 7th Gen. Intel® Core™ i5-7300U (up to 3.5GHz) / i3-7100U (2.4GHz) Dual Core processor. Featuring with a certified IP66 waterproof and dustproof stainless steel enclosure and secure lockable M12 connectors to protect against ingress of high temperature and high pressure water. It's wide operating temperature of -10°C to 60°C is ideal for freezing and hot weather conditions. With its rugged construction and slim design, the WIO series is suitable for outdoor applications and in other harsh operating environments with a high risk of dust and water spray. A build in over voltage protection (OVP), over current protection (OCP), and reverse protection DC power input makes WIO-W221C is safety system for all industrial applications.

Display
LCD Size	21.5" (16:9)
Max. Resolution	1920 x 1080 (FHD)
Brightness (cd/m2)	300 / 1000 (Optional)
Contrast Ratio	5000:1
LCD Color	16.7M
Pixel Pitch (mm)	0.248 (H) x 0.248 (V)
Viewing Angle (H-V)	178 / 178
Backlight MTBF	50000 hrs (LED Backlight)



Touch
Projected Capacitive	10 Points
Surface Hardness	7H



System
Processor	7th Gen Intel® Core™ i5-7300U Processor, Dual Core, 3MB Cache, up to 3.5 GHz 7th Gen Intel® Core™ i3-7100U Processor, Dual Core, 3MB Cache, 2.4 GHz
System Chipset	SoC Integrated
LAN Chipset	GbE1: Intel® I219LM (Support Wake-on-LAN and PXE) GbE2: Intel® I210-AT (Support Wake-on-LAN and PXE)
Audio Codec	Realtek ALC888S
System Memory	8GB DDR4 SODIMM
BIOS	AMI 128Mbit SPI BIOS
Watchdog	Software Programmable Supports 1~255 sec. System Reset



Storage
mSATA	1x 128GB mSATA SSD
SIM Socket	2x Internal SIM Socket



Expansion
Mini PCI Express	1x Full-size Mini PCIe



I/O
VGA	1x Waterproof VGA
COM	1x RS-232/422/485 by M12 D-Code 8-pin
USB	2x USB 3.0 (Waterproof connector)
LAN	2x LAN by M12 X-Code 8-pin
Others	2x WiFi Antenna Holes



Other Features
Internal Speaker	AMP 10W + 10W, Optional for IP65 Only
OSD	Power On/Off, Auto, Menu, Up and Down Multi-language



Operating System
Windows	Windows 10
Linux	Linux kernel 4.X



Power
Power Mode	AT, ATX
Power Supply Voltage	9~50VDC
Power Connector	M12 A-code 4-pin
Power Adaptor	AC/DC 24V/5A, 120W with mating 1.5M Waterproof M12 Cable
Power Protection	OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection



Environment
Operating Temp.	-10°C to 60°C
Storage Temp.	-20°C to 70°C
Relative Humidity	10% to 80% (non-condensing)
Vibration	With SSD: 2.4 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock	With SSD: 20G, half sine, 11ms
IP Level	Full System IP66
Standards / Certification	CE, FCC Class A



Physical
Front Panel Construction	Die-cast Flat Surface
Dimension	525 (W) x 320.8 (D) x 74 (H) mm
Weight	TBC
Mounting	VESA Mounting Holes 100 x 100mm



• All product specifications and information are subject without notice.

Available Models

Model No.	Description
WIO-W221C-7300U	21.5” 16:9 FHD Capacitive Touch Waterproof IP66 Panel PC with Intel® Core™ i5-7300U Processor, 1x VGA, 2x USB 3.0, 2x M12 LAN, 1x COM
WIO-W221C-7100U	21.5” 16:9 FHD Capacitive Touch Waterproof IP66 Panel PC with Intel® Core™ i3-7100U Processor, 1x VGA, 2x USB 3.0, 2x M12 LAN, 1x COM


Optional Accessories

Model No.	Description
1-TVGA00003	Waterproof VGA Cable 1.5M
1-TUSB00016	Waterproof USB 3.0 Cable 1.5M
1-TCOM00011	Waterproof COM Cable 1.5M
1-TLAN00006	Waterproof LAN Cable 1.5M



Packing List
1x WIO-W221 Series Waterproof Panel PC
1x Utility DVD Driver
1x Waterproof Connector Cover Set
1x 120W Power Adapter with mating 1.5M Waterproof M12 Cable
