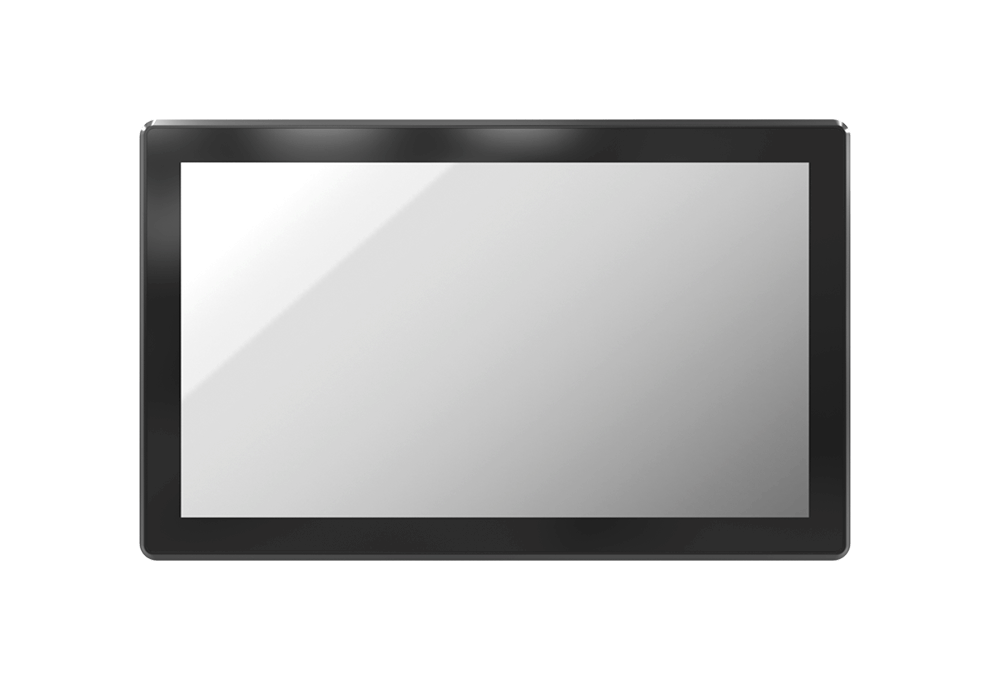

VIO-W215-PC100-EHL (NEW)

The VIO-100/PC100-EHL and VIO-200/PC100-EHL series Panel PC is based on Intel® Celeron® ​J6413 Quad Core Processor. Designed with flat surface, IP 65 dust/waterproof front panel, and aluminum die-casting front frame with rugged body structure, it is a versatile I/O connections, and rugged reliability industrial panel PC.

The VIO-100/PC100-EHL and VIO-200/PC100-EHL series Panel PC supports Multi-Mode Display Module (MDM) technology which makes it more flexible in system maintaining and upgrading. It offers modularize expansion I/O, rich connectivity interfaces, wide range (9~36V) DC power input, and high reliability even operating in temperature extremes.

Featuring with completely high functional, VIO-100/PC100-EHL and VIO-200/PC100-EHL series Panel PC are ruggedized display systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reverse protection, and wide range DC power input makes VIO-100/PC100-EHL and VIO-200/PC100-EHL series Panel PC are safety system for all industrial applications.

Display
LCD Size	15.6" (16:9)
Max. Resolution	1920 x 1080 (Full HD)
Brightness (cd/m2)	500 / 1000 (Optional)
Contrast Ratio	1000:1
LCD Color	16.7M
Pixel Pitch (mm)	0.17925(H) x 0.17925(V)
Viewing Angle (H-V)	178/178
Backlight MTBF	50000 hrs (LED Backlight)



Touch
Projected Capacitive	VIO-W215C-PC100-EHL, VIO-W215C-PC100-EHL-1E
Resistive 5-Wire	VIO-W215R-PC100-EHL, VIO-W215R-PC100-EHL-1E



System
Processor	Intel® Celeron® J6413 Processor Quad core (1.5M Cache,1.8GHz up to 3.00 GHz) FC-BGA16F, Tray 10W
System Chipset	SoC integrated
LAN Chipset	GbE1: Intel® I210 (Support Wake-on-LAN and PXE) 2.5 GbE2: Intel® I225 (Support Wake-on-LAN and PXE)
Audio Codec	Realtek ALC888S
System Memory	1x 260-Pin DDR4 2400/2667/3200MT/s SODIMM. Max. up to 32 GB
BIOS	AMI 128Mbit SPI BIOS
TPM	TPM 2.0
Watchdog	Software Programmable Supports 1~255 sec. System Reset



Storage
M.2	1x M.2 (E Key, PCIe x1, USB 2.0, 2230) 1x M.2 (B Key, PCIex 2 + USB 3.2 Gen1, 2242/3042/3052)
mSATA	1x mSATA
SIM Socket	2x External SIM socket
SSD/HDD	1x Removable 2.5" SATA HDD Bay



Expansion
Mini PCIe	1x Full-size Mini PCIe (USB 2.0, SATA)
PCIe	1x PCIe x4 (1-lanes), VIO-W215-PC100-EHL-1E Only



I/O
Audio	1x Mic-in, 1x Line-out
CAN	2x CAN 2.0 A/B 2-pin Header (Internal)
COM	4x RS-232/422/485 2x RS-232/422/485 (internal)
DIO	8 in / 8 out (Isolated)
LAN	2x RJ45
Universal I/O Bracket	VIO-W215-PC100-EHL-1E (only): 1x Universal I/O Bracket (By mini PCIe interface)
USB	2x USB 3.2 Gen 2 (10 Gbps) 2x USB 2.0
DP	1x DisplayPort 1.2 (4096 x 2160@60Hz)
HDMI	1x HDMI 2.0b (4096 x 2160@60Hz) (Optional)
Others	4x WiFi Antenna Holes 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off 1x DB9 Cutting Hole
Optical Bonding	Optional, contact us for more information



Other Features
OSD	LCD On/Off, Auto, Menu, Up and Down Multi-language
Speaker	AMP 10W + 10W



Operating System
Windows	Windows 10, Windows 11
Linux	Linux kernel 5.X



Power
Power Adapter	Optional AC/DC 12V/5A, 60W
Power Management	Power Ignition Management (by Optional Module)
Power Mode	AT, ATX
Power Supply Voltage	9~36 VDC
Power Connector	3-Pin Terminal Blcok
Power Protection	OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection



Environment
Operating Temp.	0°C to 60°C
Storage Temp.	-20°C to 70°C
Relative Humidity	10%~80% (non-condensing)
IP Level	IP 65 Compliant Front Panel
Vibration	With SSD: 1.5 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock	20G, half sine, 11ms
Standards / Certification	UL Safety: UL62368-1, 3rd Ed., (cULus) CE, FCC Class A



Physical
Dimension	VIO-W215-PC100-EHL: 398 (W) x 247 (D) x 70.7 (H) mm VIO-W215-PC100-EHL-1E: 398 (W) x 247 (D) x 92.7 (H) mm
Weight	VIO-W215R-PC100-EHL: 6.42 kg VIO-W215C-PC100-EHL: 6.46 kg VIO-W215R-PC100-EHL-1E: 6.53 kg VIO-W215C-PC100-EHL-1E: 6.57 kg
Mounting	VESA Mounting Holes 75 x 75mm, 100 x 100mm



• All product specifications and information are subject without notice.

Available Models

Model No.	Description
VIO-W215R-PC100-EHL	15.6" Full HD Resistive Touch Thin Frame Panel PC with Intel® Celeron® Processor J6413
VIO-W215C-PC100-EHL	15.6" Full HD Capacitive Touch Thin Frame Panel PC with Intel® Celeron® Processor J6413
VIO-W215R-PC100-EHL-1E	15.6" Full HD Resistive Touch Thin Frame Panel PC with Intel® Celeron® Processor J6413, 1x Universal I/O Bracket, 1x PCIe
VIO-W215C-PC100-EHL-1E	15.6" Full HD Capacitive Touch Thin Frame Panel PC with Intel® Celeron® Processor J6413, 1x Universal I/O Bracket, 1x PCIe


Optional Accessories

Model No.	Description
1-E09A06008	Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
1-TPCD00005	Power Cord, 3-pin US Type, 180cm
1-TPCD00002	Power Cord, European Type
1-TPCD00001	Power Cord, 3-pin UK Type, 180cm
3-DINR-0003	DIN-Rail Mount Kit



Packing List
1x VIO-W215-PC100-EHL Series
8x Panel Mount Kit
1x Screw Pack
