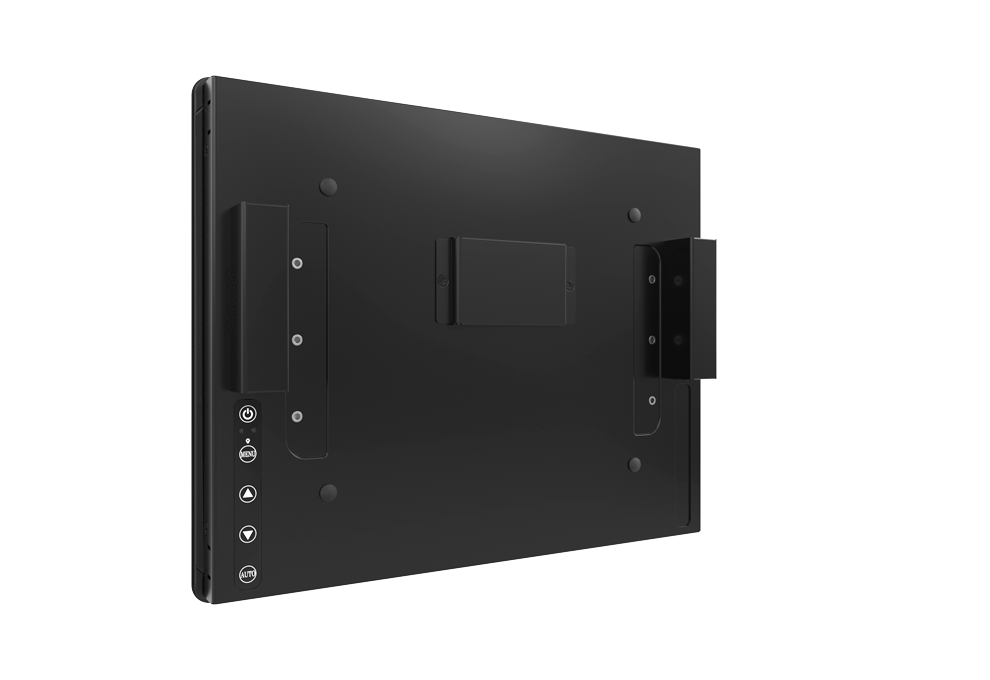

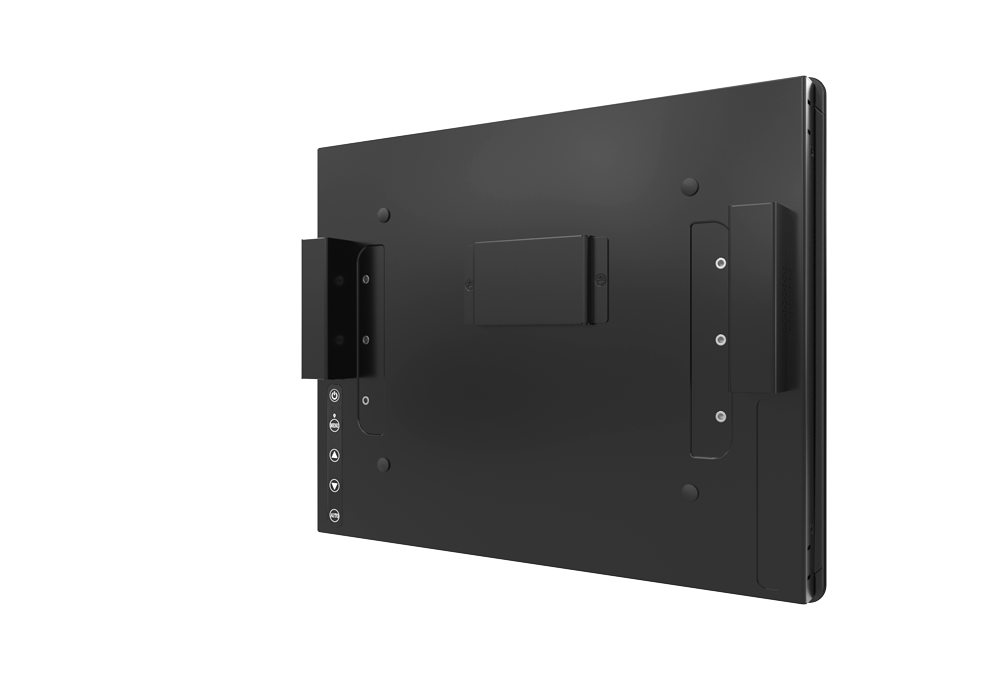

VIO-212

The VIO-100 / VIO-200 series display module features with resistive 5-wire or projected capacitive touch screen, flat surface, IP 65 dust/waterproof front panel, and aluminum die-casting front frame with rugged body structure, it is rugged and reliable for industrial environment. By supporting Multi-Mode Display Module (MDM) technology, enabling VIO-100 / VIO-200 series display module to configure, upgrade and maintain easily.

Display
LCD Size	12.1" (4:3)
Max. Resolution	1024 x 768 (XGA)
Brightness (cd/m2)	600 / 1000 (Optional)
Contrast Ratio	1000:1
LCD Color	16.2M
Pixel Pitch (mm)	0.24 (H) x 0.24 (V)
Viewing Angle (H-V)	178 / 178
Backlight MTBF	50000 hrs (LED Backlight)



Touch
Resistive 5-wire	VIO-212R and VIO-212R-11
Projected Capacitive	VIO-212C and VIO-212C-11 only



I/O
Internal Speaker	VIO-212: AMP 5W + 5W VIO-212-11: AMP 2W + 2W
OSD	LCD On/Off, Auto, Menu, Up and Down Multi-language



Environment
Operating Temp.	-10°C to 60°C
Storage Temp.	-20°C to 70°C
Relative Humidity	10%~80% (non-condensing)
IP Level	IP 65 Compliant Front Panel



Physical
Front Panel Construction	Die-cast Flat Surface
Dimension	VIO-212: 319 (W) x 257 (D) x 47.7 (H)mm VIO-212-11: 319 (W) x 257 (D) x 34.5 (H) mm
Weight	VIO-212R: 2.89kg VIO-212C: 2.83kg VIO-212R-11: TBC VIO-212C-11: TBC
Mounting	VESA Mounting Holes 75 x 75mm, 100 x 100mm



• All product specifications and information are subject without notice.

Available Models

Model No.	Description
VIO-212R	12.1" XGA Resistive Touch Thin Frame Display Module with 2x 5W Speaker
VIO-212C	12.1" XGA Capacitive Touch Thin Frame Display Module with 2x 5W Speaker
VIO-212R-11	12.1" XGA Resistive Touch Thin Frame Display Module with 2x 2W Speaker
VIO-212C-11	12.1" XGA Capacitive Touch Thin Frame Display Module with 2x 2W Speaker



Packing List
1x VIO-212 Series Display Module
10x Panel Mount Kit
