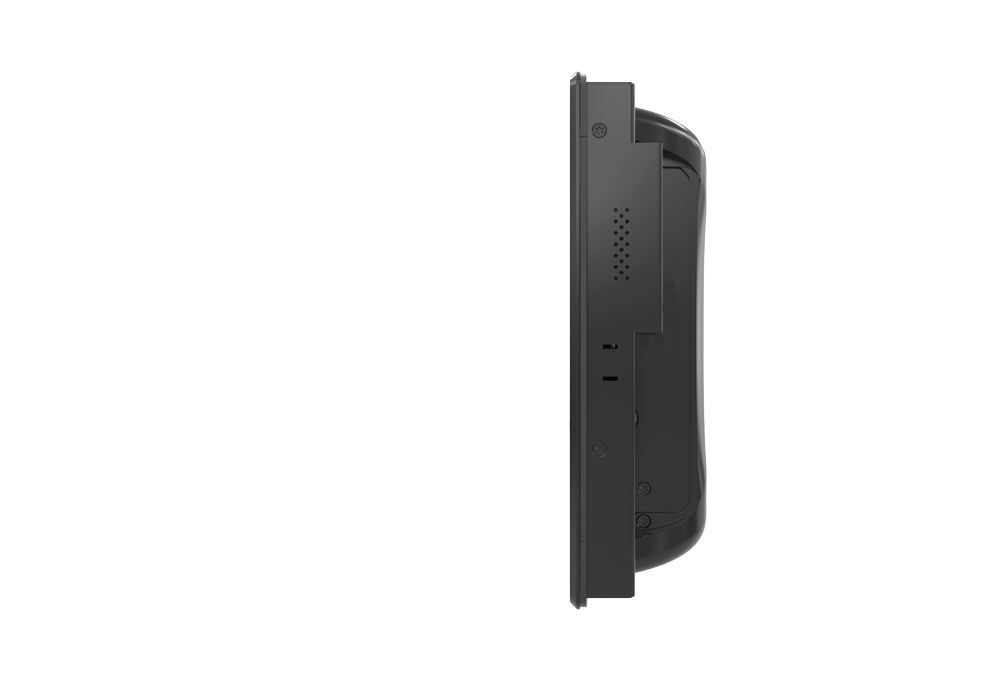

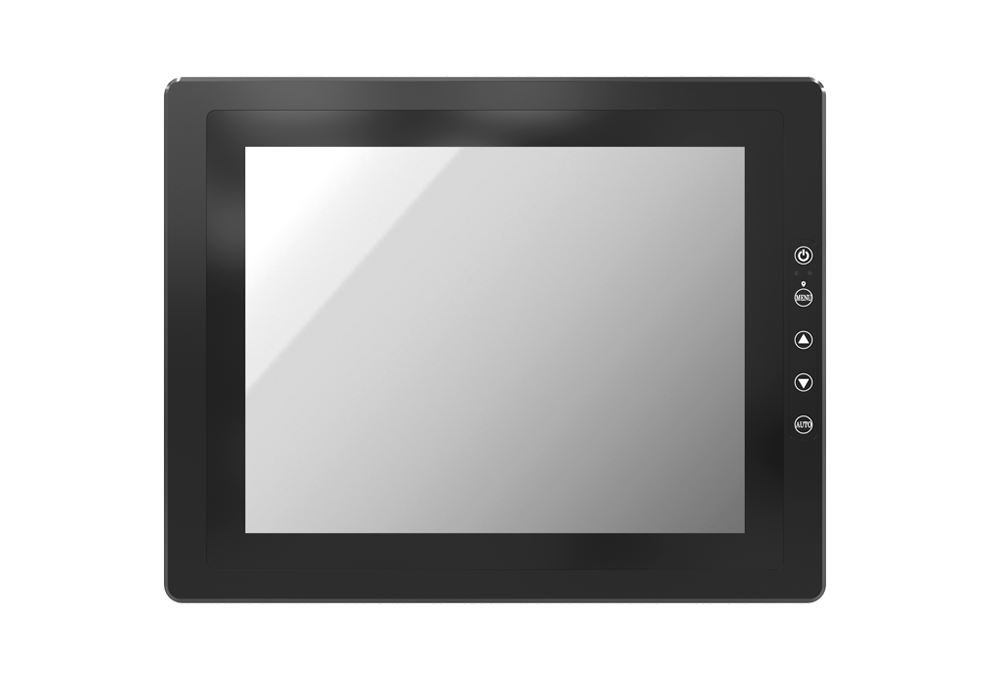

VIO-110/MX200

VIO-110/MX200 series touch monitor provide a wide selection of display sizes are available from 10.4” with a format aspect of 4:3 and selected touch type. Featuring with flat surface, IP 65 dust/waterproof front panel, and aluminum die-casting front frame with rugged body structure, it is rugged and reliable for industrial environment. It also supports Multi-Mode Display Module (MDM) technology which allows to configure, upgrade and maintain easily.

VIO-110/MX200 supports both digital and analog signal input via three types of display interface: VGA, HDMI and DisplayPort. Touch screen can be connected with USB or COM port. It also has multi-language OSD function for adjusting the view options of display. In addition, supporting wide range power input from 9 to 48VDC and high reliability even operating in temperature extremes.Featuring with completely cable-less designed and high functional, VIO-110/MX200 series are ruggedized display systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection and reverse protection DC power input makes VIO-110/MX200 series are safety system for all industrial applications.

Display
LCD Size	10.4” (4:3)
Max. Resolution	800 x 600 (SVGA)
Brightness (cd/m2)	400
Contrast Ratio	700:1
LCD Color	16.2M
Pixel Pitch (mm)	0.264 (H) x 0.264 (V)
Viewing Angle (H-V)	160 / 130
Backlight MTBF	50000 hrs (LED Backlight)



Touch
Resistive 5-wire	VIO-110R/MX200
Projected Capacitive	VIO-110C/MX200



I/O
VGA	1x VGA Input
HDMI	1x HDMI Input
DisplayPort	1x DisplayPort Input
USB 2.0	1x USB 2.0 Input
COM Port	1x COM Port Input (Resistive Touch Only)
Audio	1x Audio Input



Other Features
Internal Speaker	AMP 5W + 5W
OSD	LCD On/Off, Auto, Menu, Up and Down Multi-language



Power
Power Supply Voltage	9~48VDC
Power Connector	3-pin Terminal Block
Power Adaptor	Optional AC/DC 12V/5A, 60W
Power Protection	OVP (Over Voltage Protection) OCP (Over Current Protection) Reverse Protection



Environment
Operating Temp.	-10°C to 60°C
Storage Temp.	-20°C to 70°C
Relative Humidity	10%~80% (non-condensing)
IP Level	IP 65 Compliant Front Panel
Vibration	1.5 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock	20G, half sine, 11ms
Standards / Certification	CE, FCC Class A



Physical
Front Panel Construction	Die-cast Flat Surface
Dimension	300 (W) x 238.5 (D) x 64.7 (H) mm
Weight	3.67 kg ~ 3.74 kg
Mounting	VESA Mounting Holes 75 x 75mm, 100 x 100mm



• All product specifications and information are subject without notice.

Available Models

Model No.	Description
VIO-110R/MX200	10.4" 4:3 SVGA Resistive Touch Monitor with 2x 5W Speaker
VIO-110C/MX200	10.4" 4:3 SVGA Capacitive Touch Monitor with 2x 5W Speaker


Optional Accessories

Model No.	Description
1-E09A06008	Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch
1-TPCD00005	Power Cord, 3-pin US Type, 180cm
1-TPCD00002	Power Cord, European Type, 180cm
1-TPCD00001	Power Cord, 3-pin UK Type, 180cm



Packing List
1x VIO-110/MX200 Series Touch Monitor
6x Panel Mount Kit
1x USB Cable
1x VGA Cable
1x Screw Pack
