SIO-215-J1900

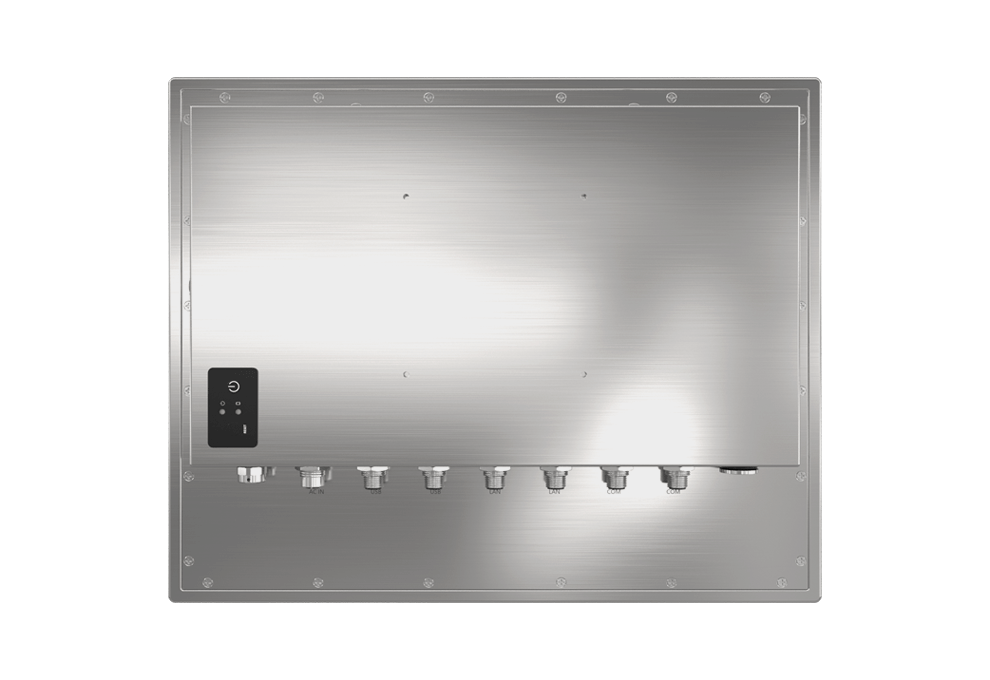

The SIO series full system IP66/IP69K waterproof stainless steel Panel PC is Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz. Featuring with a certified IP66 waterproof and dustproof stainless steel enclosure and secure lockable M12 connectors to protect against ingress of high temperature and high pressure water. It's wide operating temperature of -20°C to 55°C. Its IP69K protection makes the new monitor also suited for washdown applications like high-pressure cleaning.

Display
IP Rating	IP66/IP69K
LCD Size	15" (4:3)
Max. Resolution	1024 x 768 (XGA)
Brightness (cd/m2)	300
Contrast Ratio	2,500:1
LCD Color	16.7M
Pixel Pitch (mm)	0.297 (H) x 0.297  (V)
Surface hardness	>3H
Response time	16ms
Viewing Angle	88 /88 /88 /88 (Typ.) (CR>=10)
Backlight MTBF	70000 hrs (LED Backlight)
Operating Temperature	-20°C to 70°C
Storage Temp.	-30°C to 70°C



Touch
Surface hardness	Resistive 5-wire >3H Projected Capacitive 7H
Touch points	Resistive Single point Projected Capacitive 2 point
Impact absorption	Projected Capacitive IK07



System
Processor	Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz
System Chipset	SoC integrated
LAN Chipset	GbE1: Intel® I210-IT (Support Wake-on-LAN and PXE) GbE2: Intel® I210-IT (Support Wake-on-LAN and PXE)
Audio Codec	Realtek ALC886
System Memory	1x 204-pin DDR3L SODIMM. max up to 8GB (Default 8 GB)
TPM	TPM1.2 supported



Storage
mSATA	1x mSATA (Default 128 GB)
SIM Socket	1x Internal SIM socket



Expansion
Mini PCI Express	1x Full-size Mini PCIe



I/O
COM	2x RS-232/422/485 by M12 A-Code 8-pin
USB	4x USB 2.0 by M12 A-code 8-pin
LAN	2x LAN by M12 X-Code 8-pin
Others	2x WiFi Antenna (Optional) Power On/Off, Reset IP68/IP69K SUS 316 Vent



Other Features
OSD	Power On/Off, Reset



Operating System
Windows	Windows 10, Windows 7, WES7
Linux	Linux kernel 3.X



Power
Power Mode	ATX
Power Supply Voltage	110 ~ 240V AC Input
Power Connector	M12 S-code 4-pin



Environment
Operating Temp.	-20°C to 55°C optional wide Temp. -20°C to 60°C
Storage Temp.	-20°C to 70°C
Relative Humidity	10% to 80% (non-condensing)
Vibration	With SSD: 2.4 Grms, 5 - 500 Hz, 0.5 hr/axis With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock	With SSD: 20G, half sine, 11ms
IP Level	Full System IP66/IP69K
Standards / Certification	CE, FCC Class A



Physical
Front Panel Construction	Stainless Steel SUS316 with Optical bonding
Dimension	385 (W) x 310 (H) x 49.5 (D) mm
Weight	5.96 Kg
Mounting	VESA Mounting Holes 100 x 100mm Optional Yoke Mount, Panel Mount



• All product specifications and information are subject without notice.

Available Models

Model No.	Description
SIO-215R-J1900	15" XGA Resistive Touch Stainless Steel Panel PC with Celeron Processor J1900, AC IN, Optical bonding
SIO-215C-J1900	15" XGA Capacitive Touch Stainless Steel Panel PC with Celeron Processor J1900, AC IN, Optical bonding


Optional Accessories

Model No.	Description
1-TPWR00092	Waterproof M12 S-CODE 4P PWR Cable(SUS316L) Type_US L=3M
1-TPWR00106	Waterproof M12 S-CODE 4P PWR Cable(SUS316L) Type_EU L=3M
1-TCOM00032	Waterproof M12 A-CODE 8P COM Cable(SUS316L)_DB9 L=1.5M
1-TLAN00024	Waterproof M12 X-CODE 8P LAN Cable(SUS316L)_CAT 5E_RJ45 L=1.5M
1-TUSB00057	Waterproof M12 A-CODE 8P USB 2.0 Cable(SUS316L)_Type A*2 L=1.6M



Packing List
1x SIO-215-J1900 Series Stainless Steel Panel PC
7x Waterproof Connector Cover Set
