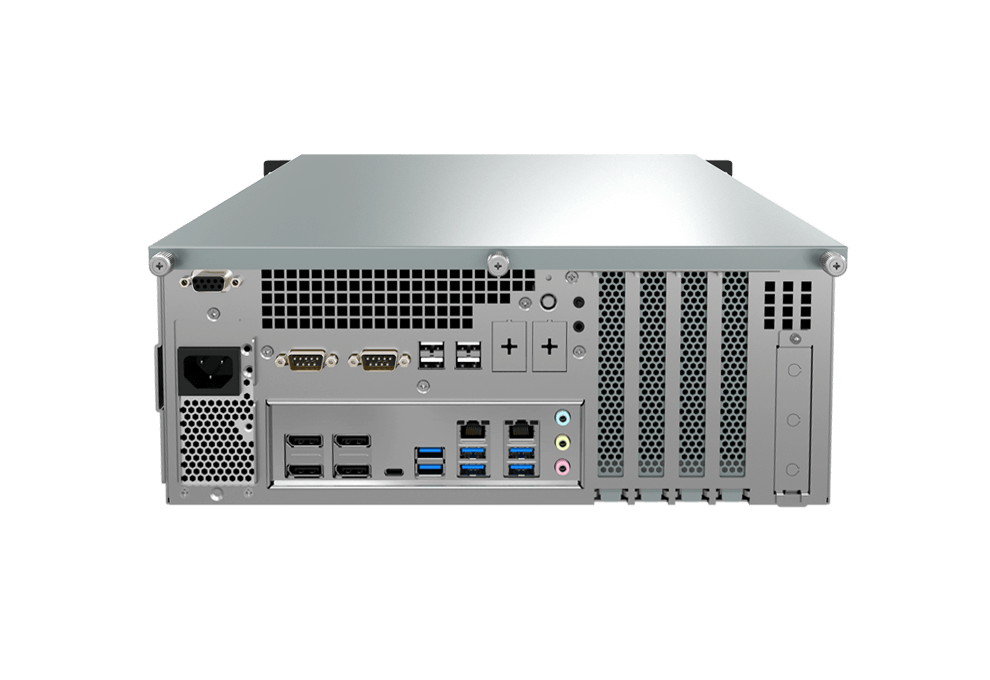

KCO-3000-RPL (NEW)

12th 13th 14th Generation Intel® Core™ processors features P-cores & E-cores, hybrid core architecture that allocates workload tasks accordingly to boost performance at the edge. This innovative design strikes a balance between high performance and energy efficiency, optimizing the KCO Series to excel in various industrial deployments.

System
Processor	Support 12/13/14th Gen Intel® ADL & RPL S Processor (LGA 1200, 65W TDP) - Intel® Core™ i9-14900T/i9-13900TE/i9-12900TE, up to 24 Cores, 36MB Cache, up to 5.5 GHz - Intel® Core™ i7-14700T, up to 20 Cores, 33MB Cache, up to 5.2 GHz - Intel® Core™ i7-13700TE/i7-12700TE, up to 16 Cores, 30MB cache, up to 4.8 GHz - Intel® Core™ i5-14500T/i5-13500TE/i5-12500TE, up to 14 Core, 24MB Cache, up to 4.8 GHz - Intel® Core™ i3-14100T/i3-13100TE/i3-12100TE, up to 4 Cores, 12MB Cache, up to 4.4 GHz - Intel® Core™ 300T, up to 2 Cores, 6MB Cache, up to 3.4 GHz - Intel® Pentium® G7400TE, 2 Cores, 6MB Cache, 3.0 GHz - Intel® Celeron® G6900TE, 2 Cores, 4MB Cache, 2.4 GHz
System Chipset	Intel® Q670E PCH
LAN Chipset	GbE1: Intel® I219LM; 1GbE (Support Wake-on-LAN and PXE) GbE2: Intel® I225-V; 2.5GbE (Support Wake-on-LAN and PXE)
Audio Codec	Realtek ALC888S HD Audio Codec, support 5.1 channel
System Memory	4x DDR4 2133/2400/2666MHz DIMM. 128 GB Max
Graphics	Intel® Integrated Iris Xe Graphic (CPU Dependent)
BIOS	AMI uEFI 256MB SPI flash
Watchdog	Software Programmable Supports 1~255 sec. System Reset
iAMT	Intel® AMT 12.0 supported
TPM	TPM 2.0



Display
Display Port	4x DP++



Storage
M.2	1x M.2 M Key: 2242/2260/2280 (NVMe, PCIe x4 Gen 4) 1x M.2 M Key: 2242/2260/2280 (NVMe/SATA, PCIe x4 Gen 4)
SATA	4x SATA III (6Gb/s)
SSD/HDD	1x 3.5" SATA HDD drive or 2x 2.5" SSD/HDD up to 15mm



Expansion
M.2	1x M.2 E Key: 2230 (PCIe x1 Gen 3/USB 2.0)
PCIe	1x PCIe x16 Slot (Gen 5) 1x PCIe x16 Slot (Gen 4, 4-Lane) 1x PCIe x4 Slot (Gen 4, Open End) 1x PCIe x4 Slot (Gen 3, Open End)



Operating System
Windows	Windows 10
Linux	Linux Kernel 5.X



I/O
Audio	1x Mic-in, 1x Line-in, 1x Line-out
COM	2x RS-232
LAN	2x RJ45
USB	2x USB 3.0 Gen 1 (Front Panel) 6x USB 3.1 Gen 2 (10 Gbps) 1x USB 3.2 Gen 2x2 (20 Gbps) Type C 4x USB 2.0



Internal I/O
Audio	1x Front panel audio
COM	4x RS-232
DIO	1x 8-bit DIO (4-in/4-out)
SATA	4 x SATA III (6 Gb/s, support RAID 0/1/5/10)
Others	1x SPI header 1x Front panel 1x CPU fan 2x System fan



Power
Power Management	ACPI 5.0 compliant
Power Mode	100-240V AC @ 50/60Hz
Power Connector	IEC 60320 C14



Environment
Operating Temperature	0 °C to 50 °C
Storage Temperature	-40 °C to 85 °C
Relative Humidity	10% ~ 90% relative humidity, non-condensing
Certification	UL 62368 Ed. 3, FCC, CE
Vibration	1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock	With SSD: 10G, half sine, 11ms



Physical
Form Factor	3U
Construction	334 (W) x 300 (D) x 133 (H) mm
Weights	5 KG (barebone w/ chassis, mb, and PSU only)
Construction	Heavy Duty Metal
Mounting Options	Rack Mountable (with special brackets)



• All product specifications and information are subject without notice.

Available Models
KCO-3000-RPL	Fanned Industrial Computer with 3U Rackmount, 12/13/14th Gen Intel® Core® Processor and Q670E PCH, PCIe Gen 5, Dual GPU, USB Type-C



Ordering Information
1-TPCD00005	Power Cord, 3-pin US Type, 180cm
1-TPCD00002	Power Cord, European Type, 180cm
1-TPCD00001	Power Cord, 3-pin UK Type, 180cm



Packing List
1x KCO-3000-RPL Series 3U Rackmount Fanned Industrial Computer
1x SATA Drive Kit (Cable, Screws, Bracket)
1x Chassis Foot Pads
1x Fan Cooler
