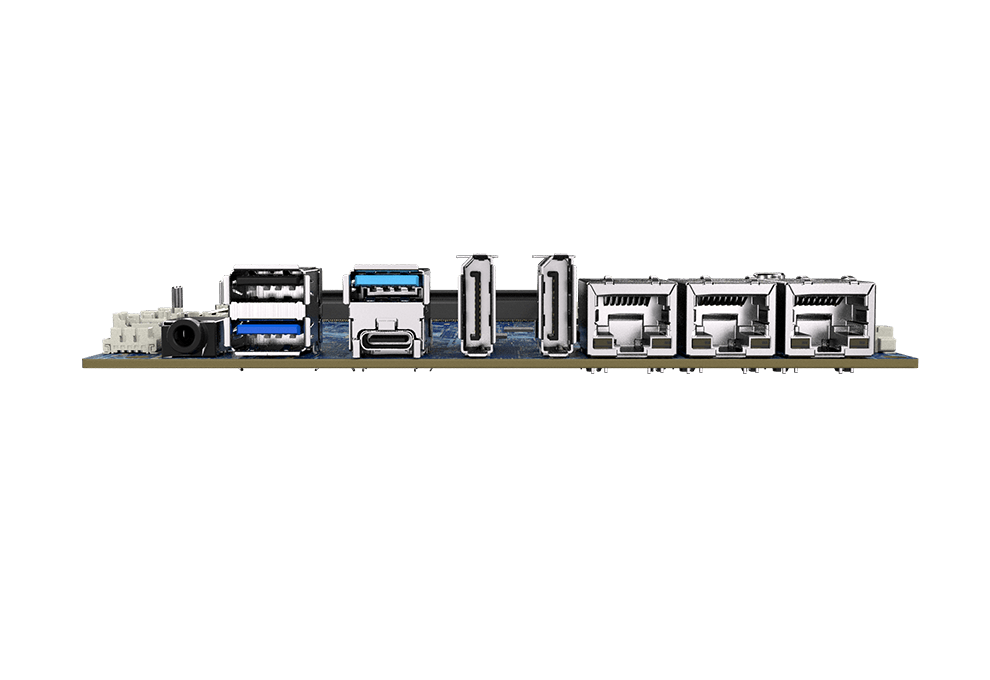

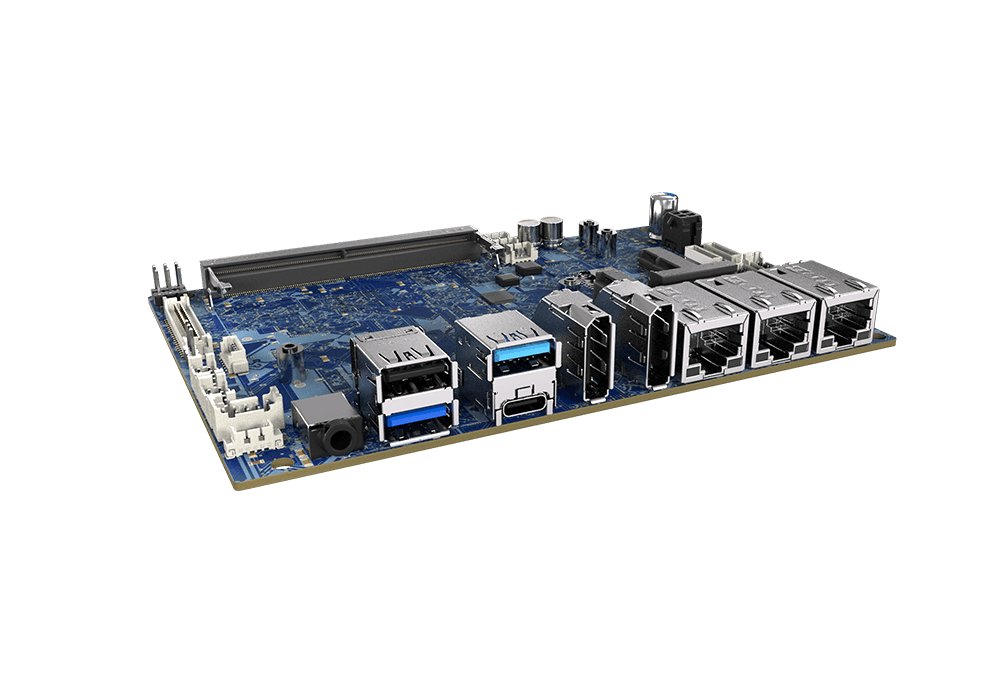

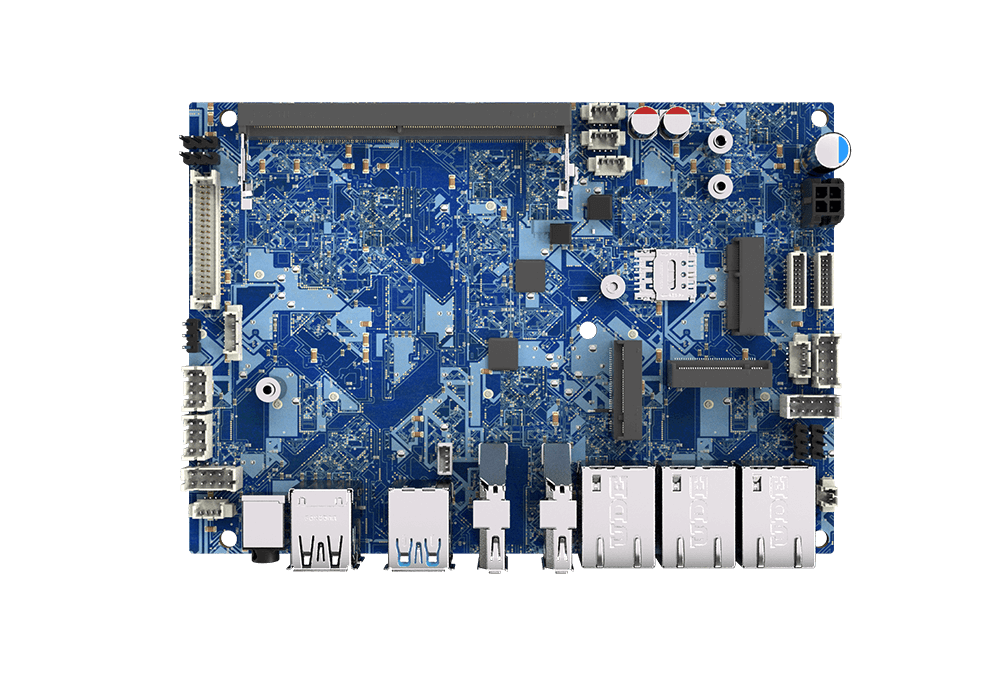

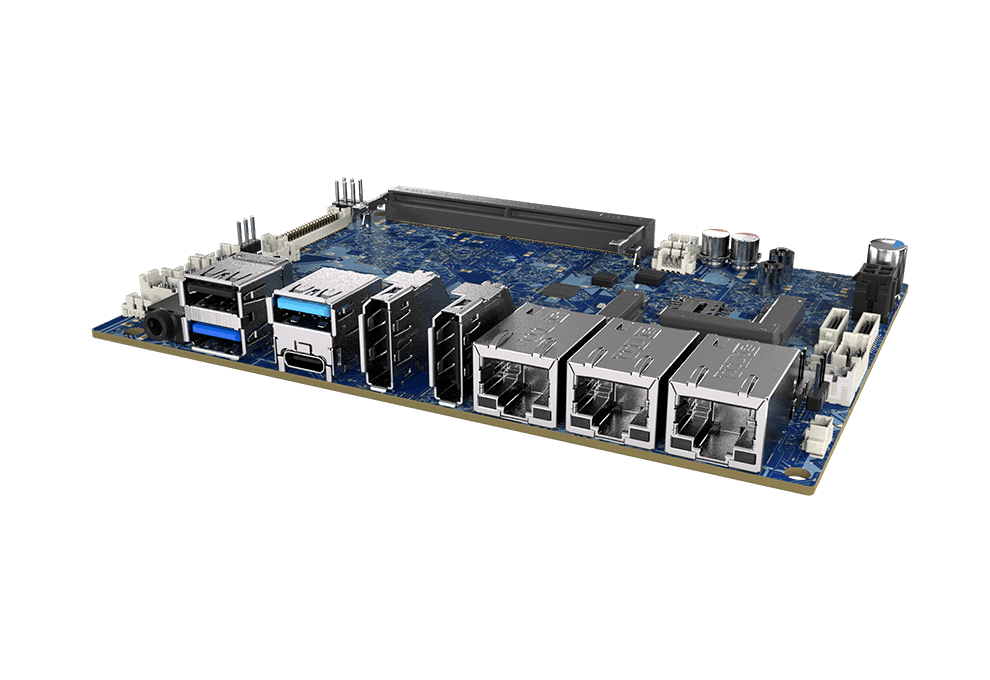

CT-DML01 (Coming soon!)
Meteor Lake-U/H
- Supports 14th Gen. Intel® Core™ Ultra Processors, Meteor Lake-U, TDP15W
- 1x 262-pin DDR5 5200 SO-DIMM. Max. up to 32GB
- 3x Intel® 2.5 GbE
- Quad simultaneous display: DP, LVDS, eDP
- 1x M.2 M Key for NVMe/ SATA, Auto detect
- 1x M.2 B Key for 4G/5G support, 1x M.2 E Key for Wifi/Bluetooth
- 2x SIM Nano Socket
- 1x USB Type-C, 1x USB 3.2 Gen 1, 2x USB 2.0
- 4x RS-232/422/485 (internal), 1x 8-bit GPIO
- Watchdog timer 1~255sec. system reset
- dTPM 2.0 Supported
- Wide Voltage DC IN 12~24V
-
Overview
Next-Generation Multi-Tile Architecture with Intel Meteor Lake
Powered by Intel’s cutting-edge Meteor Lake CPUs, the CT-DML01 leverages a modular multi-tile architecture to efficiently handle demanding workloads and next-generation applications. With an integrated Neural Processing Unit (NPU), it accelerates generative AI tasks without overloading the CPU or GPU cores, optimizing performance for AI-driven workloads.
- Intel® Core™ Ultra 5 Processor 125U 12M Cache, up to 4.30 GHz (2+8+2 core)
- Intel® Core™ Ultra 7 Processor 155U 12M Cache, up to 4.80 GHz (2+8+2 core)
Intel Latest Innovations: AI-Optimized NPU
The Neural Processing Unit (NPU) is Intel’s latest AI acceleration technology, designed to handle continuous machine learning tasks without burdening the CPU or GPU. By offloading AI workloads to the NPU, the CT-DML01 ensures high efficiency during sustained inference, making it ideal for real-time analytics, predictive maintenance, and natural language processing.
High-Performance DDR5 Memory Support
WithDDR5 memory support, the CT-DML01 offers high bandwidth, efficient datahandling, and responsive performance for heavy workloads.
- 1x262-Pin DDR5 5200MHz SO-DIMM slot (262-pin), Max 32GB
Quad Independent Display Outputs
The CT-DML01 is designed to drive up to four independent displays, accommodating a variety of visual requirements:
- 2x DP++: Handles ultra-high resolutions up to 3040x 2160 @60Hz
-
eDP: Up to 3840 x 1260 @60Hz, ideal for high-quality embedded displays.
-
1x LVDS up to 1920x1200 @60Hz, dual channel for clear, sharp imagery.
Extensive M.2 Expansion Capabilities
The CT-DML01 supports multiple M.2 expansion slots to meet a wide range of application needs:
-
M.2 M Key (2280): PCIe x4 Gen 4 and SATA support, offering auto-detection for NVMe and SATA SSDs.
-
M.2 B Key (3042/3052): Enables 4G/5G connectivity with PCIe x2, USB 3.0, and USB 2.0 support.
-
M.2 E Key (2230): Provides wireless connectivity options including Wi-Fi and Bluetooth modules.
-
