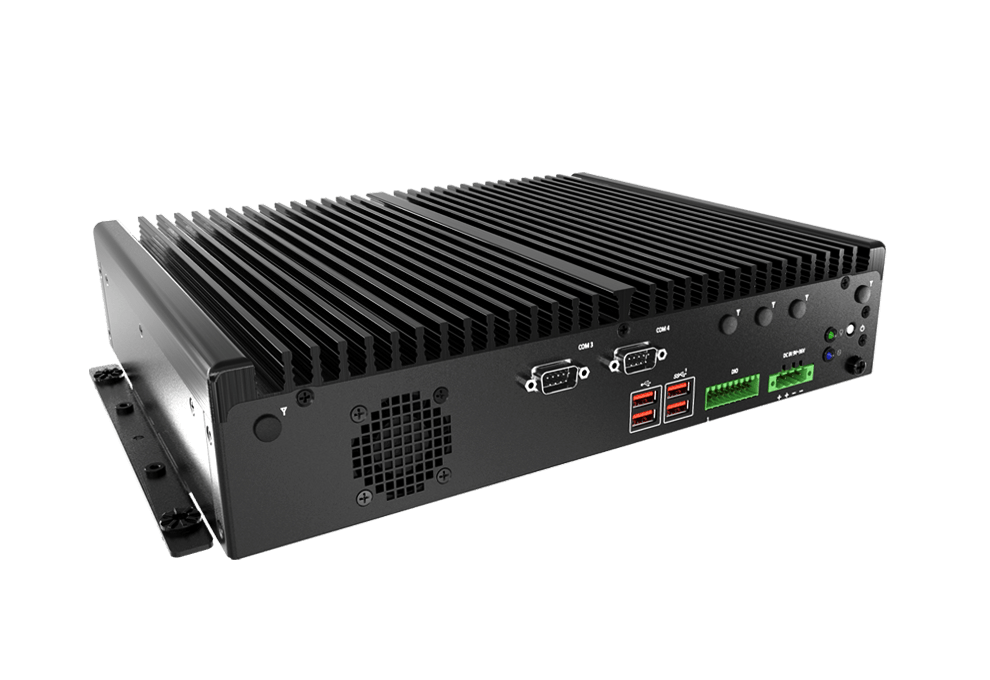

BCO-6000-RPL (NEW)

An embedded industrial computer does not need to break the bank to deliver the necessary performance at the rugged edge. Finding the right industrial solution that strikes the perfect balance between size, performance, and cost efficiency is a steep challenge for many rugged edge applications. Achieving operational objectives can often present a dilemma, having to decide which of the three are a priority over another.​
​
The BCO Series is designed to take a robust approach to provide essential edge computing features into the rugged edge that will not compromise on performance or reliability. The BCO-6000-RPL is designed with a semi-rugged chassis to shield against the harsh conditions at the edge.​

📥 Download BCO-6000-RPL Product Brief

System
Processor	● Intel® IOTG Raptor Lake-S Processor Core i9/i7/i5/i3, Pentium, Celeron (35W only) ● Intel® IOTG Alder Lake-S Processor Core i9/i7/i5/i3,, Pentium, Celeron (35W only)
System Chipset	Intel® Q670E Express Chipset
LAN Chipset	Intel® I226LM PCIe 2.5GbE LAN Intel® I226V PCIe 2.5GbE LAN Intel® I226V PCIe 2.5GbE LAN
Audio Codec	Realtek ALC897
System Memory	2x DDR4 3200MT/s SODIMM. Max. up to 64 GB (Default: 8GB & Non- ECC supported)
BIOS	AMI UEFI BIOS
Watchdog	Software Programmable Supports 1~255 sec. System Reset
TPM	TPM 2.0



Display
Display Port	2x Dual Mode DisplayPort 1.4a Max Resolution 4096 x 2304 @60Hz
HDMI	1x HDMI 1.4b Max Resolution 4096 x 2304 @24Hz
Multiple Display	3x Independent Displays



Storage
M.2	1x M.2 M key Type (2242/2280): ● Support PCIe x4 Gen3 NVMe SSD ● PCIe x4 Gen3 signal from PCH ● Support B+M Key ● Default: 128GB SSD



Expansion
M.2 B-Key	1x M.2 B key Type: 3042 with Nano SIM Holder (Support PCIe x1 + USB 3.2 Gen 2 x1 + USB 2.0, 5G/4G/LTE/AI Module)
M.2 E-Key	1x M.2 E key Type: 2230 (Support PCIe x1 + USB 2.0; Support CNVi) Devices Supported: Intel® AX210 Wi-Fi 6E & BT-5.1 (vPro Supported)
PCIe	2x PCIe x8 Slot or 1x PCIe x16 Slot 1x Default Industrial Fan Support A2000 GPU (optional)



Operating System
Windows	Windows 10/11
Linux	Linux Kernel



I/O
Audio	1x Mic-in, 1x Line-out
COM	4x DB9 COM1:RS232/422/485 COM2: RS232/422/485 COM3: RS485 COM4: RS485
DIO	8 in / 8 out (Isolated)
LAN	3x RJ45 (2.5GbE)
USB	6x USB 3.2 Gen2 2x USB 3.2 Gen1 2x USB 2.0 Type-A
Others	5x Antenna Holes 1x Power button 1x HD LED 1x Power LED



Power
Power Adapter	Optional AC/DC 24V/9.2A, 220W for CPU and GPU Expansion
Power Mode	AT, ATX (Default ATX)
Power Supply Voltage	9~36VDC Default 24~36VDC for add GPU Card
Power Connector	4-pin Terminal Block



Environment
Operating Temperature	0°C to 50°C (35W CPU) Tested according to: IEC60068-2-1:2007 (Cold test procedure) IEC60068-2-2:2007 (Dry heat test procedure) IEC60068-2-3:2007 (Damp heat, steady state, test procedure) IEC60068-2-14:2009 (Wide temperature range thermal shock)
Storage Temperature	-30°C to 85°C
Relative Humidity	10% to 95% (non-condensing)
Certification	UL 62368 Ed. 3, CE, FCC Class A
Vibration	With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis)
Shock	With SSD: 50G half-sin 11ms



Physical
Construction	330 (W) x 240 (D) x 69 (H) mm
Weights	4 kg
Construction	Extruded Aluminum with Heavy Duty Metal
Mounting Options	Wall Mounting



• All product specifications and information are subject without notice.

Available Models
BCO-6000-RPL-1E16	AI Edge Computer with Intel Raptor Lake-S/ Alder Lake-S® CPU, 2x DP, 1x HDMI, 2x COM, 1x PCIe (16-lane)
BCO-6000-RPL-2E8	AI Edge Computer with Intel Raptor Lake-S/ Alder Lake-S® CPU, 2x DP, 1x HDMI, 2x COM, 2x PCIe (8-lane)



Ordering Information
1-E09A12002	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch
1-TPCD00005	Power Cord, 3-pin US Type, 180cm
1-TPCD00002	Power Cord, European Type, 180cm
1-TPCD00001	Power Cord, 3-pin UK Type, 180cm



Packing List
1x BCO-6000-RPL
1x Wall Mount Kit
1x Accessory Kit
