BCO-500-ADL (Coming soon!)
Semi-Rugged Fanless Mini Computer with Intel® Alder lake N97/i3-N305 Processor, 1x DP, 1x HDMI, 4x USB, 2x LAN
FEATURES
- Support Intel® Alder Lake N97/i3-N305 Processor
- 1x 262-Pin DDR5 4800MT/s SO-DIMM. Max. up to 16GB
- Dual Independent Display by 1x Display Port, 1x HDMI
- 2x Intel® I225-V 2.5GbE LAN
- 1x M.2 B-Key, 1x M.2 E-Key
- 2x COM, 4x USB 3.2, 1x Line-out
- 12 to 36VDC Wide Range Power Input Supporting AT/ATX Mode
- Wide Operating Temperature -10°C to 50°C
- TPM 2.0 Supported
- CE, FCC Class A, UL, VCCI, RCM
-

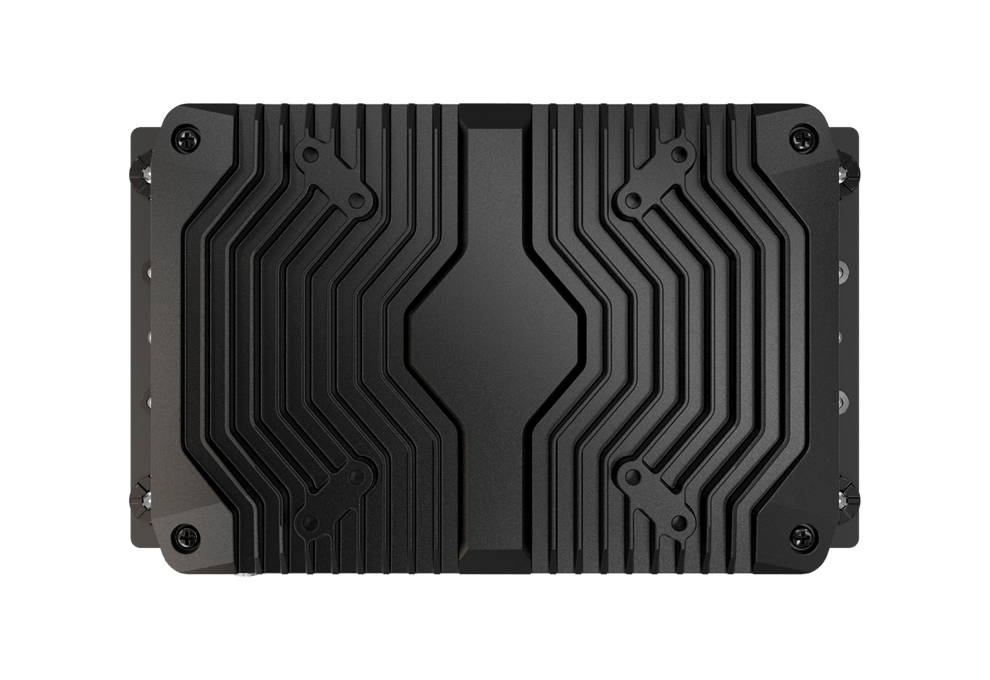

OverviewThe BCO-500-ADL is a fanless mini embedded computer that brings robust performance and connectivity to the most space constrained applications. Powered by 12th Generation Intel Alder Lake N, the BCO-500-ADL provides an industrial alternative to consumer-grade Intel NUCs. It’s mini form factor allows the computer to seamlessly retrofit into space-constrained applications and integrate with IoT devices and sensors.
-
