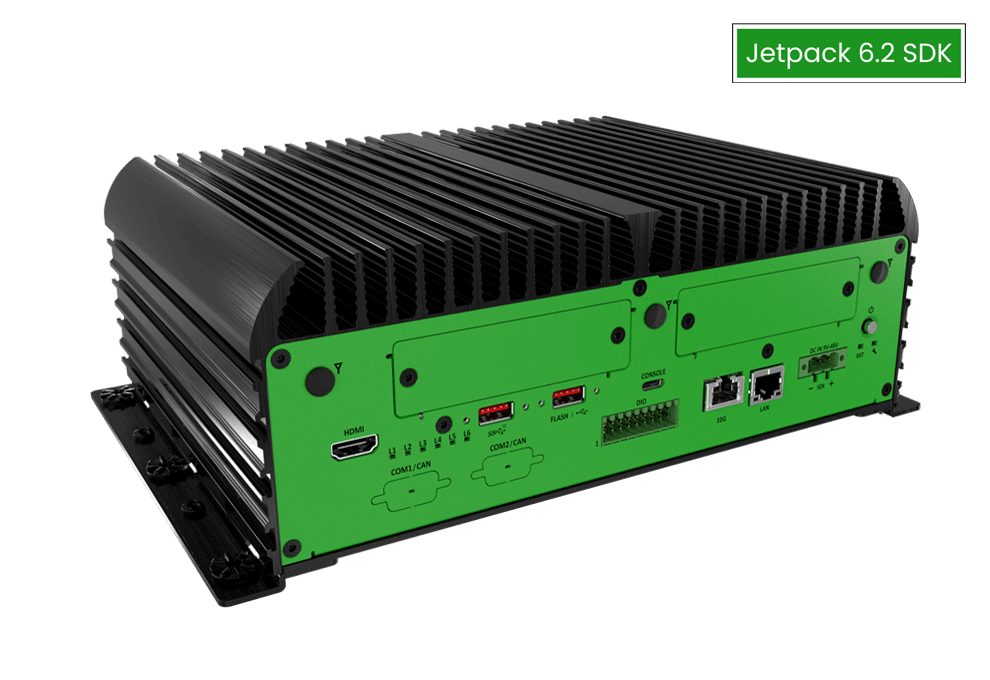

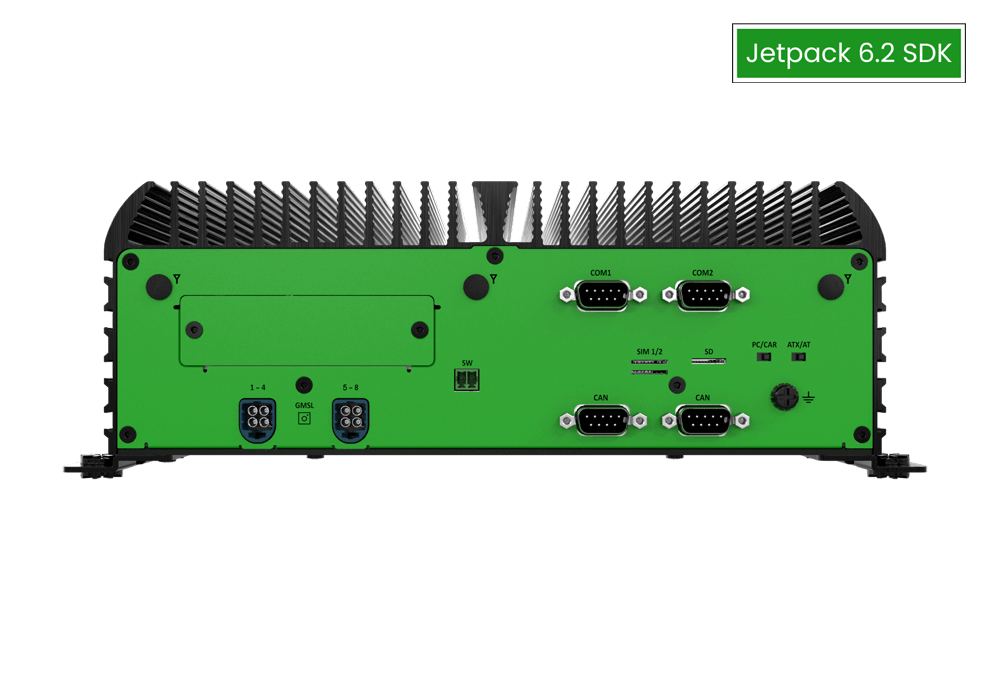

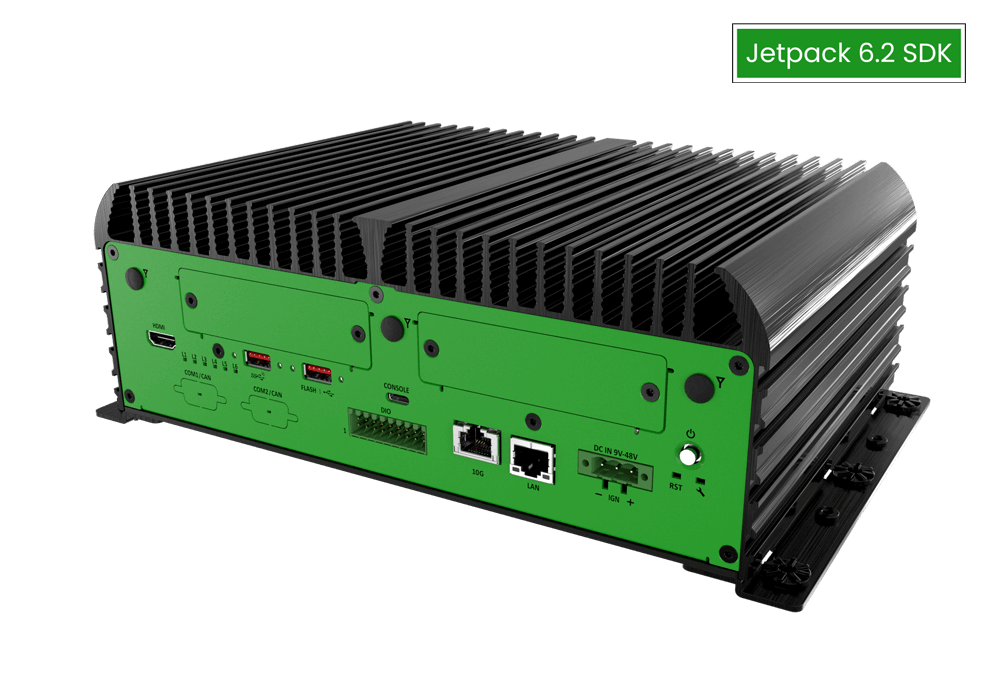

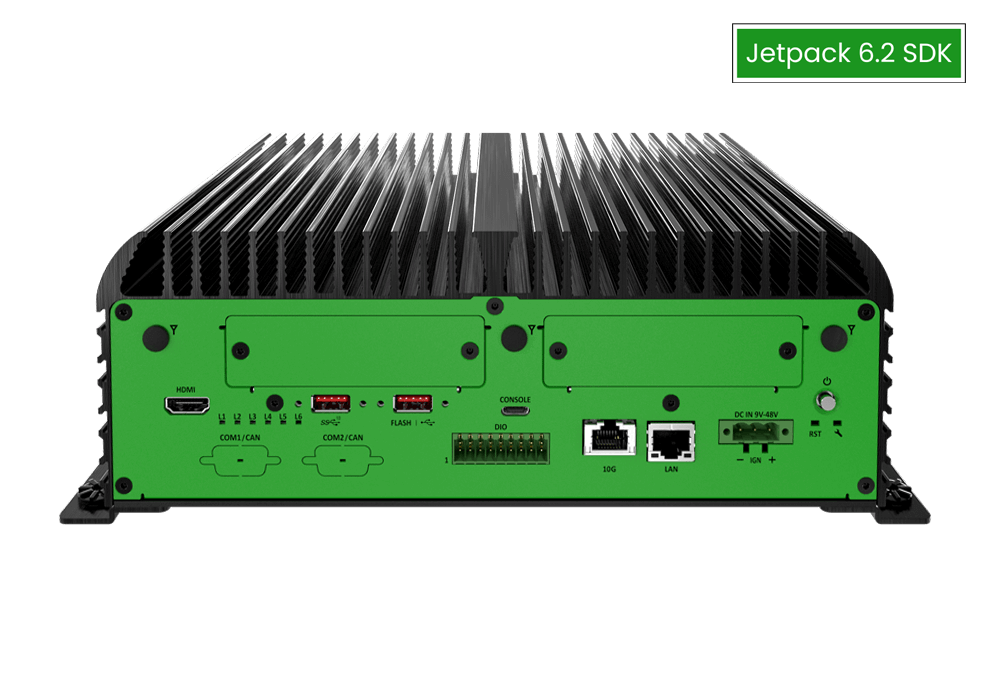

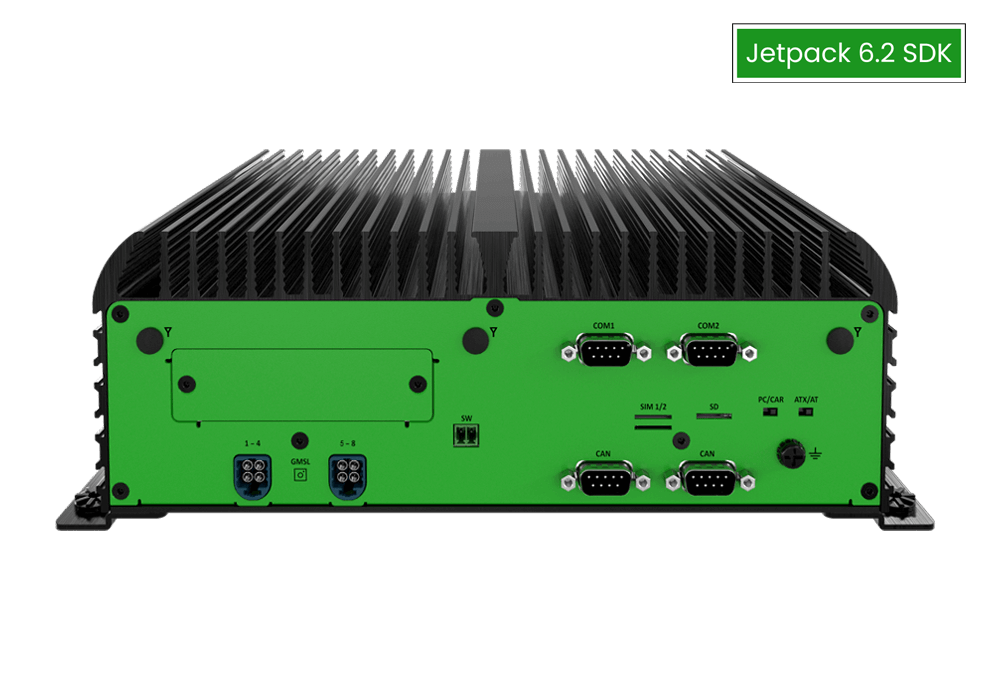

JCO-6000-ORN-A (NEW)

The JCO-6000-ORN-A series is an ultra-rugged fanless edge AI industrial computer powered by NVIDIA Jetson AGX Orin modules (275 TOPS). It supports up to 8x GMSL2 cameras and includes up to 2x EDGEBoost I/O for USB3, PoE, and GigE vision cameras. This Edge AI computer also features remote management capabilities through an OOB module.

At C&T, we pride ourselves in providing competent edge computing solutions that deliver reliable performance while deployed in challenging industrial environments. Our flagship line of rugged-edge computers has achieved UL Listed and has been rigorously tested and validated for safety standards compliance: UL Listed (Pending), FCC/CE, E-Mark, EMC-Conformity including EN 50155. Test procedure: CB Scheme.

📥Download JCO-6000-ORN series Product Brief

System
Processor	• 64 GB, 12-core Arm® Cortex®-A78AE v8.2 64-bit CPU (60W/275 TOPS) • 32 GB, 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU (40W/200 TOPS)
LAN Chipset	GbE1: Marvell 88e1512 (right) 10 GbE2: Marvell AQC113(left)
System Memory	AGX Orin 32 GB/64 GB LPDDR5 @ 3200 MHz on SOM
TPM	TPM 2.0



Display
HDMI	1x HDMI, 3840 x 2160 @ 60Hz



Storage
eMMC	1x eMMC 5.1, 64 GB
M.2	1x M.2 (M Key, 2280, PCIe x4, Support NVMe) (Default 128GB)
SD	1x Micro SD Socket
SIM Socket	2x Micro SIM Socket (M.2 B Key attached)



Expansion
M.2	1x M.2 (B Key, 3042/3052, USB 3.2 Gen 2, Support 4G/5G Module) 1x M.2 (E Key, 2230, PCIe x1, USB 2.0, Support Wi-Fi/Bluetooth)
Expansion Modules Support EDGEBoost I/O Modules: • 4x GbE module with Intel® I350 Chipset, RJ45/M12 connector (PoE optional) • 2x RJ45 10GbE with Intel X710 Chipset • 4x USB 3.0 Locking Type with 2x screw hole • 4x USB 3.0 (share PCIe Gen2 x1 bandwidth) • 1x M.2 M Key, PCIe x4 Lane, 2242/2260 for NVMe Storage *The left EBIO Bracket on the front panel don't support PoE Module



Operating System
Linux	Linux Ubuntu 20.04 with JetPack



I/O
CAN	2x CAN 2.0 B
COM	2x RS-232/422/485 (Switch by MCU)
DIO	8 in / 8 out (Isolated)
EDGEBoost I/O Bracket	2x EDGEBoost I/O Bracket
GMSL Camera	GMSL 2 Camera Support by 2x Quad Port Mini Fakra, supporting 8x 1280x720 @ 30 FPS (Optional)
LAN	2x RJ45
OOB	1x RJ45 (OOB Management Module, Optional, Occupied 1x EBIO Bracket and 1x COM & 1x USB Type-C Console Port)
PoE	By Optional PoE Power Module, Support up to three 4x RJ45/M12 LAN Module
USB	1x USB 3.2 Gen 2 (10 Gbps) 1x USB Type C (Console) 1x USB 2.0 (OS Flash)
LED	LED 1 : System Status (Blue) LED 2 : Programmable LED (Blue) LED 3 : Programmable LED (Blue) LED 4 : Programmable LED (Blue) LED 5 : Programmable LED (Blue) LED 6 : Programmable LED (Red)
Others	6x Antenna Holes 1x Power Switch, 1x Reset Switch, 1x Force Recovery Switch 1x AT/ATX Switch, 1x Remote Power On/Off 1x PC/CAR Mode Switch



Power
Power Adapter	Optional AC/DC 24V/5A, 120W Optional AC/DC 24V/9.2A, 220W Optional AC/DC 24V/11.67V, 280W
Power Mode	AT, ATX
Power Ignition Sensing	Adjustable Power Ignition Management
Power Supply Voltage	DC IN 9~48V DC IN 48~110V, Optional (occupied 1x EBIO Bracket) 12V: PoE Power Budget Supports Up to 40~60W 24V: PoE Power Budget Supports Up to 120W
Power Connector	3-pin Terminal Block
Power Protection	OVP (Over Voltage Protection); OCP (Over Current Protection) Reverse Protection



Environment
Operating Temperature	-20°C to 55°C (AGX 64G, MaxN Mode at 68 Watt, Non-Throttling) -20°C to 50°C (AGX 64G, MaxN Mode at 68 Watt, Non-Throttling, With PoE/10G/4U3V Module, full CPU+GPU stressing) with 0.6 m/s airflow
Storage Temperature	-40°C to 85°C
Relative Humidity	10% to 95% (non-condensing)
Certification	EMI:     • CE     • FCC Class A (47 CFR part 15.109 and part 15.107)     • ICES-003     • UKCA EMC Compliance:    • Railway EMC: EN 50155: 2017, EN 50121-1: 2017, EN 50121-3-2: 2016     • Industrial EMC: EN 61000-4-2: 2009, EN IEC 61000-4-3: 2020, EN 61000-4-4: 2012, EN 61000-4-5: 2014 +A1: 2017, EN 61000-4-6: 2014     • E-Mark (E24) Safety:     • UL Safety Pending: UL62368-1, 3rd Ed., (cULus)    • Test procedure: CB Scheme     • Standard: IEC 62368-1:2018 Green Product:     • RoHS 3.0 (Directive 2015/863/EU)     • REACH
Vibration	IEC60068-2-64:2008 With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis) Designed to comply with MIL-STD-810G Method 514.7 Procedure I
Shock	IEC60068-2-27:2008 With SSD: 50G half-sin 11ms Designed to comply with MIL-STD-810G Method 516.7 Procedure I Package Drop Test: ISTA 2A



Physical
Construction	270 (W) x 190 (D) x 95 (H) mm
Weights	6 ~ 7 kg
Construction	Extruded Aluminum with Heavy Duty Metal
Mounting Options	Wall Mounting



• All product specifications and information are subject without notice.

Available Models
JCO-6000-ORN-A	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM
JCO-6000-ORN-A-4L	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 6x LAN, 3x USB, 2x COM
JCO-6000-ORN-A-4LM12	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 4x M12 LAN
JCO-6000-ORN-A-8L	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 10x LAN, 3x USB, 2x COM
JCO-6000-ORN-A-8LM12	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 8x M12 LAN
JCO-6000-ORN-A-4P	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 4x PoE
JCO-6000-ORN-A-4PM12	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 4x M12 PoE
JCO-6000-ORN-A-D10G	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 2x 10G LAN
JCO-6000-ORN-A-4U3	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 7x USB, 2x COM
JCO-6000-ORN-A-8U3	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 11x USB, 2x COM
JCO-6000-ORN-A-4U3V	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 4x USB Locking Ports
JCO-6000-ORN-A-8U3V	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 8x USB Locking Ports, 2x COM
JCO-6000-ORN-A-M2MK	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 1x M.2 M-Key
JCO-6000-ORN-A-110V	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 1x 110V DC IN
JCO-6000-ORN-A-8GMSL	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 3x USB, 2x COM, 8x GMSL
JCO-6000-ORN-A-OOB	Superior Edge AI Computer with NVIDIA Jetson AGX Orin 12-core/8-core Arm® CPU, 2x LAN, 2x USB, 1x COM, 1x RJ45 OOB



Ordering Information
1-E09A12002	Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch
1-E09A22102	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch
1-E09A22801	Adapter AC/DC 24V/11.67A 280W with 3pin Terminal Block Plug 5.0mm Pitch
1-TPCD00005	Power Cord, 3-pin US Type, 180cm
1-TPCD00002	Power Cord, European Type, 180cm
1-TPCD00001	Power Cord, 3-pin UK Type, 180cm



Packing List
1x JCO-6000-ORN-A Robust AI Edge Computer
1x Wall Mount Kit
1x Accessory Kit
